Test Programs for my 8-bit computer

06 Jan 2026

In my previous post, I announced that build of Ben Eater’s 8-bit Computer is done. That means it is now time to put it through its paces!

My goal is to develop a sequence of programs that will test every opcode that is available to us in the basic instruction set.

The total instruction set includes:

• LDI x: Load the value x directly into the A-register

• LDA x: Load the value specified at address x into the A-Register

• STA x: Store the value in the A-register into memory location x

• HLT: Stops program execution

• OUT: Prints the value in the A-register to the display

• ADD x: Adds the value stored in memory location x to the value in the A-Register and store the result in the A-register.

• SUB x: Subtracts the value tored in memory location x from the value in the A-Register and store the result in the A-register.

• JMP x: Continue program execution at address x.

• JZ x: Continue program execution at address x if the Zero-bit is set in the flags.

• JC x: Continue program execution at address x if the Carry-bit is set in the flags.

Program 1

0:  LDA [14]
1:  ADD [15]
2:  OUT
3:  HLT
14: #28
15: #14

This program test: LDA, ADD, OUT, and HLT. If you enter the program and get the value 42 printed on the display when you run it, those instructions work. This is the program that Ben uses in his videos.

Program 2

0: LDI #1   ;   0101 0001
1: OUT      ;   1110 0001
2: ADD [15] ;   0010 1111
3: JMP 1    ;   0110 0001
15: 0000 0001

Start counting at 1 and increment the counter each time the program loops.

This program adds tests for LDI and JMP. If your program starts counting at 1, shows the value on the display, and then continues to the next number, the instructions work.

Program 3

0: LDI #15   ;  0101 1111
1: OUT      ;   1110 0001
2: SUB [15] ;   0011 1111
3: JZ 0     ;   1000 0000
4: JMP 1    ;   0110 0001
15: 0000 0001

Start counting at 15 and count down to 0. When the counter reaches 0, start back at 15. After each counter update, show the result on the display.

This program adds tests for SUB and JZ. The expected behavior is that you’ll see the counter count down from 15 to 0 (inclusive) and then restart at

Program 4

0: LDI #10  ; 0101 1010
1: STA #15  ; 0100 1111
2: LDI #5   ; 0101 0101
3: LDA #15  ; 0001 1111
4: OUT      ; 1110 1111
5: HLT      ; 1111 1111

I couldn’t really come up with a fancy one, so I kept it simple. This programs loads the value 10 into the A-register, and the stores it at memory address 15. It then changes the A-register to 5, followed by retrieving address 15 and storing it into the A-register. Lastly, the program ends.

This program adds tests for STA. If the display shows the number 5, there is a problem. If it shows the number 10, we’re all good to go.

UPDATE: I forgot to check for JC. To be continued!

It is alive!

03 Jan 2026

It is alive!

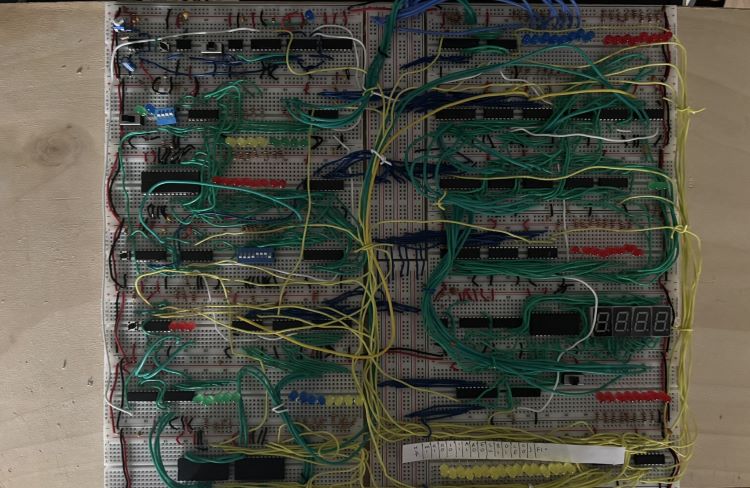

The 8-bit computer works! Well– in any case: some parts of it do.

The program that Ben uses in his videos works! It outputs 42 (as it should)

0:  LDA [14]
1:  ADD [15]
2:  OUT
3:  HLT
14: #28
15: #14

That means that the commands: LDA, ADD, OUT, HLT are implemented correctly!

In addition to my previous lessons-learned, here are some more insights:

1. Build using the schematics. Using the videos is fine as reference, but they should not lead.

2. Redraw the schematics if you make changes to the circuits. For example, you want to do this if you switch out components. I used KiCad.

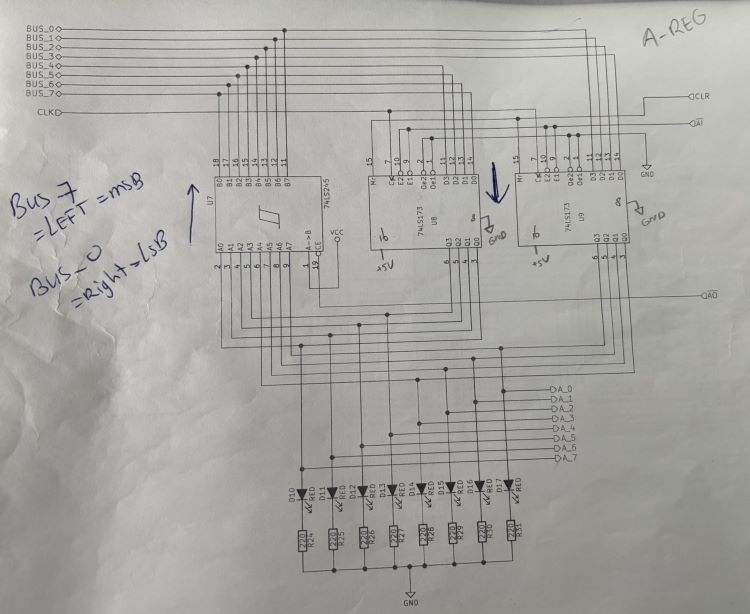

3. Don’t be afraid to mark up schematics. I marked them quite a bit. Sometimes with ‘L’ and ‘R’ to denote components (left or right), or with arrows to denote direction of data flow. It helps understand what’s actually going on, which is necessary to troubleshoot.

   For example:





4. Pull all unused inputs high or low so that the corresponding output is high. I used 10k resistors.

5. Pull all outputs on the microcode EEPROMs high or low. Active low control signals get pulled high; active high control signals get pulled low. I used 10k resistors.

6. Add current-limiting resistors to all LEDs. I forgot the program counter ones, which caused their 74LS245 to not behave nicely. This does mean that you’ll have to move stuff around on the board; there simply isn’t enough space to put LEDs with the current-limiting resistors to keep them where Ben has them in his videos.



7. Don’t skip any wires ;) It took quite a bit of troubleshooting to realize that I never connected the 74LS283s in the ALU to the A-register. Oops.

8. When you get to the stage that you have all of the boards in use, hot-glue them to a piece of 1/8” plywood. That allows you to move your project without worrying that things are going to shift. I made mine to be the height of the computer, but gave myself about 10” in either side (left, right) so I can move my pliers, multimeter, etc. with the project.

What’s next?

Write code to test all the instructions! I’ll post updates about that too.

8-Bit Computer

22 Dec 2025

I have decided to build Ben Eater’s 8-bit Computer during Winter break. The initial wiring is done. Of course, that didn’t go without issues.

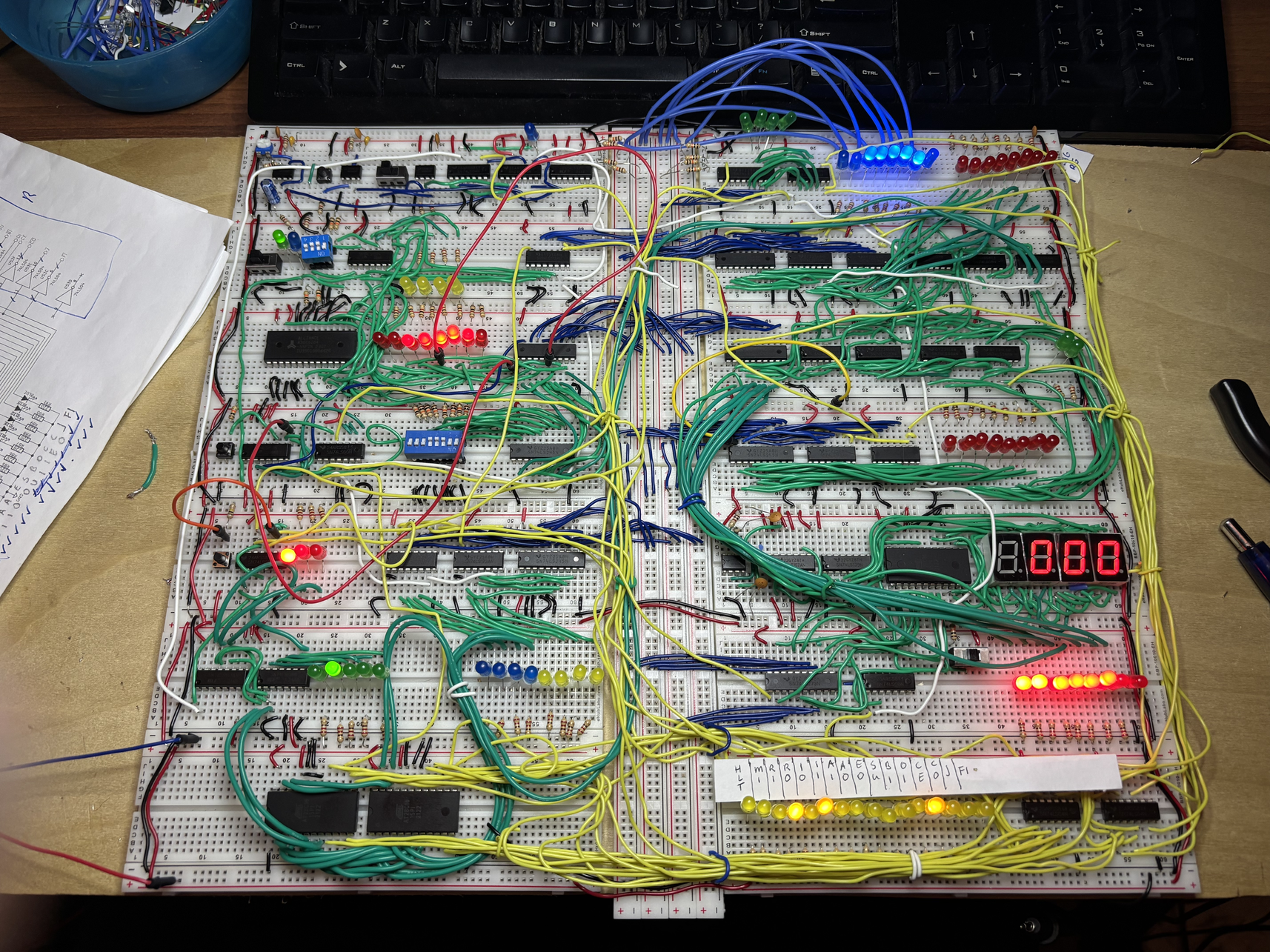

1. I ran out of wire. That’s my own fault; I changed the layout of the board and made some miscuts. I had other colored wire laying around, but that was not single-core. You’ll see some of the green stuff in the bottom-left (see below). Since it is not solid core, it also doesn’t hold shape as well.

2. I fried a ton of LEDs in the process. So, despite reading Helpful Tips and Recommendations for Ben Eater’s 8-Bit Computer Project and not using current-limiting resistors everywhere, I went ahead and did that.

   This also solved the problem of low voltages, causing inputs not to reach TTL levels.

   LEDs were easy to get on Amazon.

3. I must have also killed some other components along the way. I know of at least one 74LS245 and one 74LS04. Amazon to the rescue again for a set of various components and for a bunch of new inverters.

4. The DIP switches just didn’t want to stay in the board, so I ended up having to solder some header pins to them. That fixed the issue completely.

5. One of my memory chips was bad. Reddit to the rescue. Thanks to The8BitEnthusiast on the r/beneater subreddit, I found an updated schema using a newer memory chip in the r/beneater Subreddit.

Right now, I’m troubleshooting. It seems that the 47LS173 in the instruction register is getting all the correct input voltages, but doesn’t actually output the bus signal to the output pins.

When I remove the chip from the board and test it in isolation, it does work, however.
